Nickel aluminum

Prompt:Click the thumbnails to see more different types of products
  • Description
  • Parameters


Excellent corrosion resistance and good salt spray resistance.
Operating temperature:-55-125C.

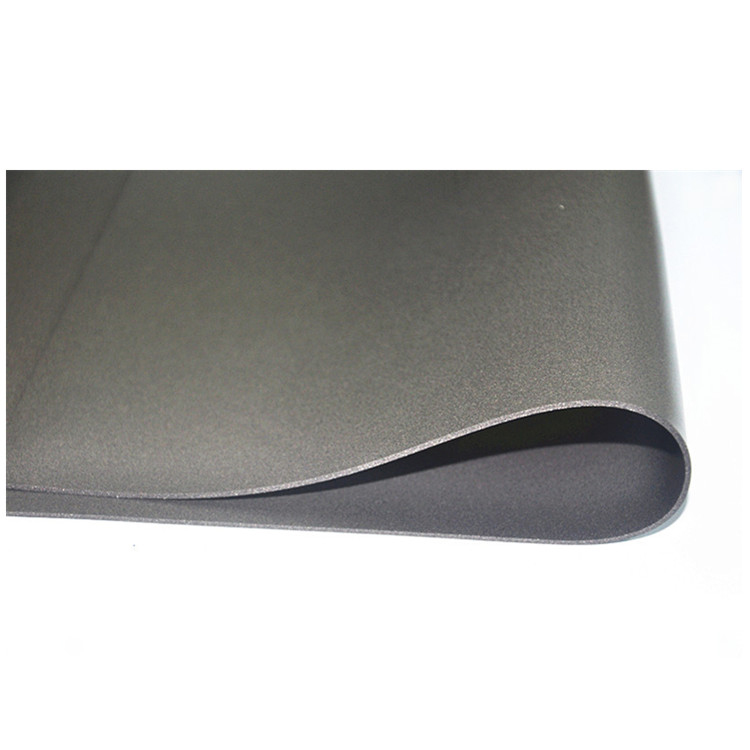

Appearance  is dark gray.




标准Standard

单位Unit

BH-E

6501GD

BH-E

6521GD

橡胶基材  basic



硅橡胶Silicone

氟硅胶Fluorosilicone

导电填料 filler



铝镀镍Ni/Al

铝镀镍Ni/Al

体积电阻率 /max

volume resistivity

GB/T 36763-2018

Ω∙cm

0.15

0.25

密度 density

GB/T 533-2008

g/cm³

3.5±0.25

3.7±0.25

硬度 hardness

GB/T 531.1-2008

ShoreA

70±5

72±10

拉伸强度 tensile strength

GB/T 528-2009

MPa

1.5

1.0

断裂伸长率/min

elongation at break

GB/T 528-2009

%

100

50

撕裂强度 tear strength

GB/T 529-2008

kN/m

7.0

6.1

压缩永久变形/max (100℃*70h)

compression set

GB/T 7759.1-2015

%

30

30

低温特性/min  low-temp

GB/T 1682-2014

-55

-55

持续使用温度/max  continuous-temp

/

125

125

150MHz/电场 (E-field)




GB/T 36763-2018




dB

90

90

500MHz/电场 (E-field)

98

98

2GHz平面波 (Plane Wave)

100

100

10GHz平面波  (Plane Wave)

85

85

18GHz平面波 (Plane Wave)

67

67

热老化后体电阻率

Volume resistivity after aging test

GB/T 36763-2018

Ω∙cm

0.2b

0.25b

阻燃特性flame retardant

UL94

/

HB

V-1

RoHs

/

/

YES

YES
