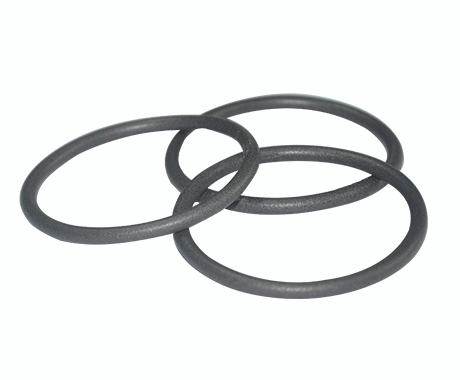

O-rings
- Description
- Parameters
Filler : Nickel graphite
Material : silicone rubber
molded rubber products
1. molded rubber sheet
2.molded O rings
3.flange rubber gaskets
4.custom rubber profiles
High -conductive silicone rubber ,composed of high performance silicon rubber and the metal particle of silvered-plated copper, silvered plated aluminum, silvered-plated glass, nickel graphite, carbon filled,
have become the standardized products for EMI shielding in the harsh environment of wide frequency range .
With the good performance on sealing, excellent physical and mechanical properties, as well as the good EMI shielding effectiveness,
It also can be well used in a complex electromagnetic environment .
|
序号No. |
内径（ID）/mm |
线径（CS）/mm |
序号No. |
内径（ID）/mm |
线径（CS）/mm |
序号No. |
内径（ID）/mm |
线径（CS）/mm |
|
1 |
1.25 |
0.40 |
34 |
12.00 |
1.50 |
67 |
25.50 |
2.00 |
|
2 |
1.80 |
0.50 |
35 |
14.00 |
1.50 |
68 |
28.00 |
2.00 |
|
3 |
4.30 |
0.60 |
36 |
17.00 |
1.50 |
69 |
28.70 |
2.00 |
|
4 |
2.75 |
0.75 |
37 |
5.60 |
1.57 |
70 |
31.00 |
2.00 |
|
5 |
2.80 |
0.80 |
38 |
10.00 |
1.60 |
71 |
31.80 |
2.00 |
|
6 |
4.60 |
0.81 |
39 |
13.40 |
1.60 |
72 |
23.60 |
2.10 |
|
7 |
3.00 |
1.00 |
40 |
16.10 |
1.60 |
73 |
20.00 |
2.20 |
|
8 |
3.50 |
1.00 |
41 |
56.70 |
1.60 |
74 |
27.80 |
2.20 |
|
9 |
4.00 |
1.00 |
42 |
15.49 |
1.78 |
75 |
19.70 |
2.50 |
|
10 |
4.40 |
1.00 |
43 |
16.64 |
1.78 |
76 |
22.50 |
2.50 |
|
11 |
5.00 |
1.00 |
44 |
18.54 |
1.78 |
77 |
37.00 |
2.50 |
|
12 |
5.50 |
1.00 |
45 |
24.48 |
1.78 |
78 |
15.00 |
2.62 |
|
13 |
6.00 |
1.00 |
46 |
25.12 |
1.78 |
79 |
25.00 |
2.62 |
|
14 |
8.00 |
1.00 |
47 |
26.18 |
1.78 |
80 |
26.00 |
2.62 |
|
15 |
10.00 |
1.00 |
48 |
33.05 |
1.78 |
81 |
37.76 |
2.62 |
|
16 |
16.00 |
1.00 |
49 |
6.50 |
1.80 |
82 |
40.94 |
2.62 |
|
17 |
17.00 |
1.00 |
50 |
10.00 |
1.80 |
83 |
44.11 |
2.62 |
|
18 |
18.00 |
1.00 |
51 |
11.80 |
1.80 |
84 |
47.29 |
2.62 |
|
19 |
20.60 |
1.00 |
52 |
12.50 |
1.80 |
85 |
16.00 |
2.65 |
|
20 |
6.00 |
1.10 |
53 |
14.00 |
1.80 |
86 |
18.00 |
2.65 |
|
21 |
5.40 |
1.20 |
54 |
16.00 |
1.80 |
87 |
22.40 |
2.65 |
|
22 |
10.00 |
1.20 |
55 |
17.00 |
1.80 |
88 |
25.00 |
2.65 |
|
23 |
14.00 |
1.20 |
56 |
17.50 |
1.80 |
89 |
26.00 |
2.65 |
|
24 |
25.80 |
1.20 |
57 |
18.00 |
1.80 |
99 |
28.00 |
2.65 |
|
25 |
9.00 |
1.30 |
58 |
21.80 |
1.80 |
100 |
32.00 |
2.65 |
|
26 |
10.00 |
1.30 |
59 |
5.50 |
2.00 |
101 |
36.50 |
2.65 |
|
27 |
5.42 |
1.35 |
60 |
14.00 |
2.00 |
102 |
6.00 |
3.00 |
|
28 |
4.00 |
1.50 |
61 |
15.50 |
2.00 |
103 |
61.00 |
3.20 |
|
29 |
5.50 |
1.50 |
62 |
16.00 |
2.00 |
104 |
17.80 |
3.50 |
|
30 |
6.00 |
1.50 |
63 |
16.80 |
2.00 |
105 |
45.00 |
4.00 |
|
31 |
6.50 |
1.50 |
64 |
22.20 |
2.00 |
106 |
50.00 |
4.40 |
|
32 |
9.00 |
1.50 |
65 |
23.00 |
2.00 |
107 |
31.50 |
4.50 |
|
33 |
10.00 |
1.50 |
66 |
24.80 |
2.00 |
108 |
54.05 |
4.80 |
